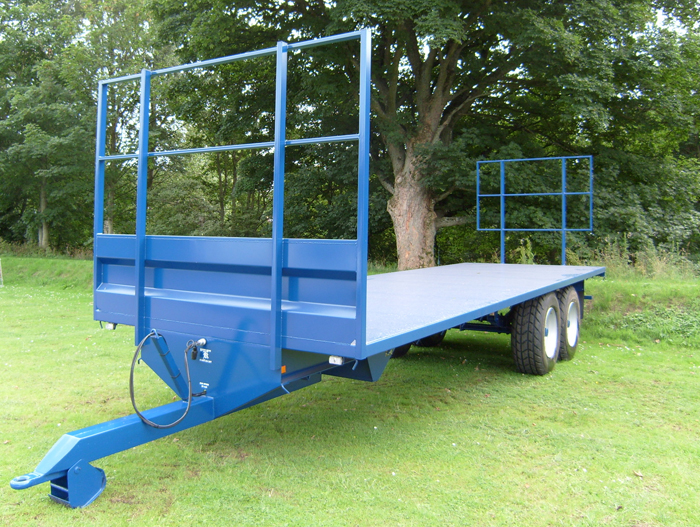

Blue 8T agricultural specification flat trailer:
| Length | up to 21ft |
|---|---|
| Carrying Capacity | 8,000kg |
| Body | 8ft wide |
| Chassis | 203 x 133 steel I section |
| Bearers | 50 mm steel RHS |
| Side Rails | 80 x 40 mm steel RHS |
| Floor | Smooth steel floor |
| Axles | Agricultural specification - 6 stud 70mm square 300 x 60 brakes |
| Suspension | 10T agricultural multi-leaf suspension, 4 leaf springs |
| Wheel Rims | 6 stud fully welded |
| Tyres | 12.5/80*15.3 new agricultural tyres |
| Braking | Standard hydraulic braking system Multi-stroke commercial ratchet handbrake |
| Drawbar | 150 x 150 steel RHS 40mm towing ring |
| Headboard | Open |

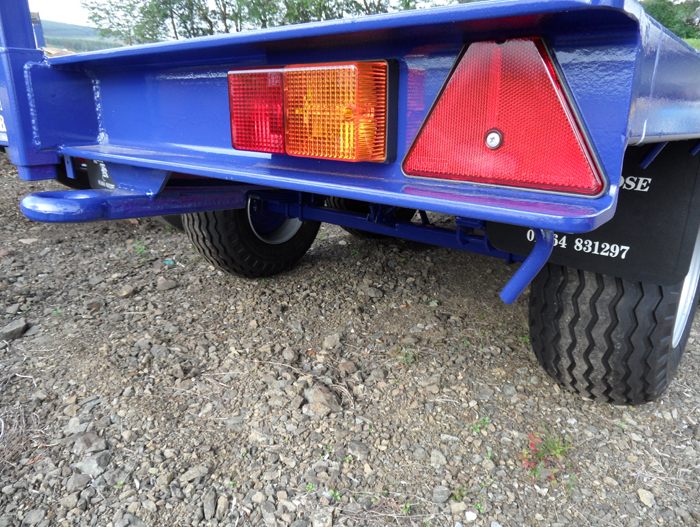

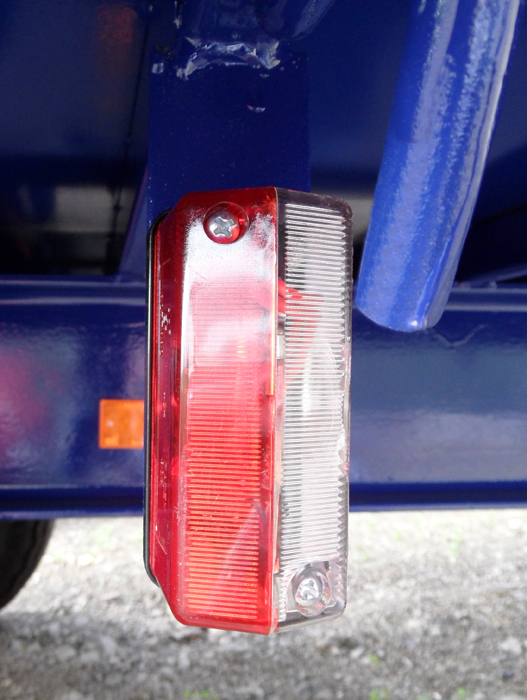

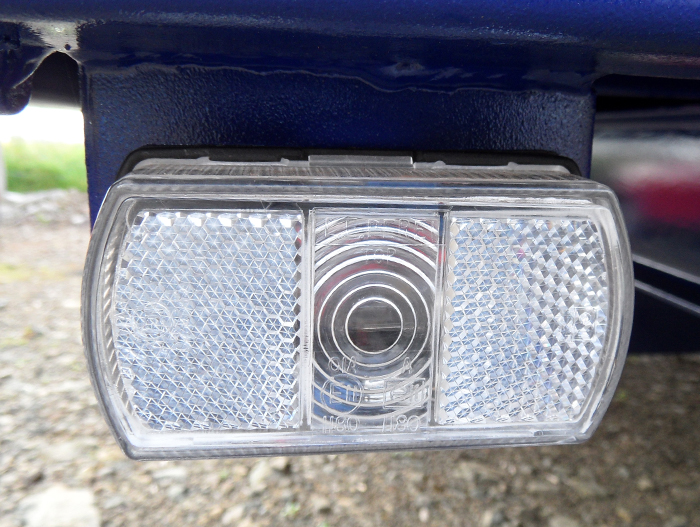

| Lighting | Standard lighting system Front markers Side markers Combination rear lights |
| Paint | All structural steelwork is shot blasted and prime painted prior to fabrication. Whole trailer is primed then top coated twice with Ultramax High Gloss paint to achieve 140 microns. |
| Axle Options | Upgrades available |
| Tyre Options | 400/60 x 15.5 340/65 x 18 Michelins |

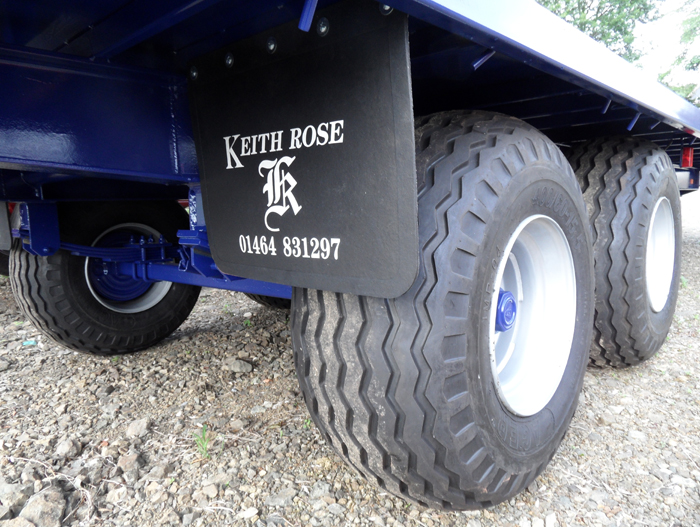

| Other Features | Removable rear bale retainer Rear towing ring Mudflaps Rope hook on every bearer |
| Optional Extras | Closed headboard Extended headboard/back frame Switchable LED pulsing amber repeater Lockable plastic toolbox |
Blue 11T agricultural specification flat trailer:
| Length | up to 27ft |
|---|---|
| Carrying Capacity | 11,000kg |
| Body | 8ft wide |
| Chassis | 254 x 146 steel I section |
| Bearers | 60 x 40 mm steel RHS |
| Side Rails | 80 x 40 mm steel RHS |
| Floor | Smooth steel floor |
| Axles | Agricultural specification - 8 stud 80mm square 350 x 90 brakes |
| Suspension | 13T agricultural multi-leaf suspension, 5 leaf springs |
| Wheel Rims | 8 stud fully welded |
| Tyres | 385/65 x 22.5 agricultural remoulds |
| Braking | Standard hydraulic braking system Multi-stroke commercial ratchet handbrake |
| Drawbar | 150 x 150 steel RHS 40mm towing ring |
| Headboard | Open |
| Lighting | Standard lighting system Front markers Side markers Combination rear lights |
| Paint | All structural steelwork is shot blasted and prime painted prior to fabrication. Whole trailer is primed then top coated twice with Ultramax High Gloss paint to achieve 140 microns. |
| Axle Options | Upgrades available |
| Tyre Options | 340/65 x 18 Michelins Floatation tyres |
| Other Features | Removable rear bale retainer Rear towing ring Mudflaps Rope hook on every bearer |
| Optional Extras | Closed headboard Extended headboard/back frame Switchable LED pulsing amber repeater Lockable plastic toolbox |
